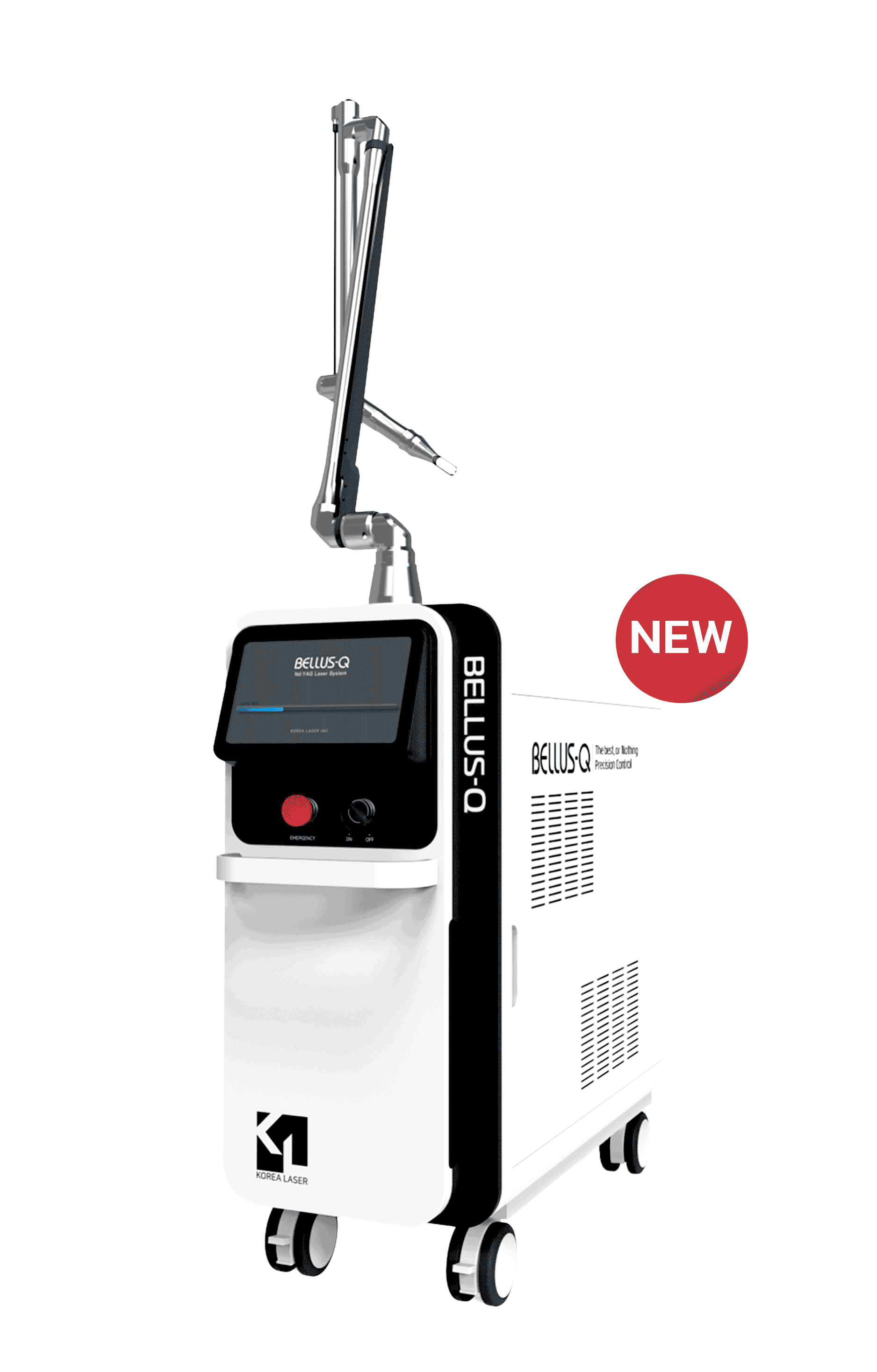

BELLUS-Q
ALL New High-End, BELLUS-Q
PRODUCT HIGHLIGHTS
Reliable Q-Switched Nd:YAG laser for daily clinical use
1
Stable and clean pulse output for safe, predictable results
2
Effective pigmentation, toning, brightening, pore improvement & tattoo removal
3
Genesis Mode for non-ablative skin rejuvenation with no downtime
4
5
Improves pores, redness, skin tone, and overall texture
6
Advanced Multi-Pulse Mode with up to 6 pulse stacking
7
Enhanced safety for melasma, sensitive, and Asian skin types
8
100% designed and manufactured in Korea for quality and reliability
PTP (Photoacoustic Twin) Mode
6 Pulse Mode
Patented Technologies
Through years of research and development, backed by numerous patents that are advanced from the competition, Bellus Q is a Innovative Q-Switch ND:YAG Laser that provides a truly unique and
innovative solution that outstands the market.
“Control System for Thermal Lens Effect in Medical Laser Device”
“Laser Oscillation Device by Single Chamber”
Various Handpieces
Bellus-Q offers optimized treatment options with a wide range of handpieces.Depending on the location, color, or conditions of the skin lesions, users can select the most suitable handpiece to achieve the intended clinical results. This flexibility allows for customized treatment options and better outcomes for patients.
Zoom Handpiece
1064 & 532 nm
Regulatory Status
Specification
Wavelength
1064nm / 532 nm
Beam Mode
Top hat
Pulse Duration
5-10ns
Pulse Energy
Max. 1500 mJ @ 1064 nm (Single)
Max. 2000 mJ @ 1064 nm (Single)
Max. 3200 mJ @ 1064 nm (Genesis)
Max. 500 mJ @ 532 nm (Single, Double)
Repetition Rate
1-10Hz
Peak Power
300 MW
Handpiece
Zoom H/P : 2-10mm
MLA H/P : 4-9mm
Removal of Pigmented Lesions and Tattoo
When the laser light is applied to the skin, it is absorbed by the pigment or tattoo particles, causing them to
heat up and break down into smaller fragments. These smaller fragments are then recognized as foreign
bodies by the immune system and are removed from the body through a process called phagocytosis,
which involves specialized immune cells called macrophages engulfing and digesting the particles.
Over time, as the immune system removes the smaller pigment or tattoo particles,
the color of the tattoo or pigmented area fades, eventually leading to complete removal.
Skin Rejuvenation
PICO-K picosecond laser technology emits very short pulses of light that can penetrate the skin and create Laser-Induced Optical Breakdown (LIOB) in the dermis.
The LIOB generates plasma formation that results in a controlled thermal injury to the dermis while sparing the epidermis.
This injury triggers a natural healing response in the body, which stimulates the production of new collagen and elastin fibers and the remodeling of existing collagen, resulting in skin rejuvenation effects.
Skin Rejuvenation
PICO-K picosecond laser technology emits very short pulses of light that
can penetrate the skin and create Laser-Induced Optical Breakdown (LIOB) in the dermis.
The LIOB generates plasma formation that results in a controlled thermal injury to
the dermis while sparing the epidermis. This injury triggers a natural healing response.
in the body, which stimulates the production of new collagen and elastin fibers
and the remodeling of existing collagen, resulting in skin rejuvenation effects.
